Home /Products/Piezoelectric Load Cell/Stainless Steel Cells Alloy Stainless Steel Cells Alloy Force Test Compression Piezoelectric Pressure Sensor Miniature Electronic Machine Inspection Load Cell

Stainless Steel Cells Alloy Stainless Steel Cells Alloy Force Test Compression Piezoelectric Pressure Sensor Miniature Electronic Machine Inspection Load Cell

5 Pieces
MOQ
Stainless Steel Cells Alloy Stainless Steel Cells Alloy Force Test Compression Piezoelectric Pressure Sensor Miniature Electronic Machine Inspection Load Cell
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: LFC-10
Type: Force Sensor
Usage: Force Test
Theory: Resistive Strain Sensor
Output: Analog Signal
Capacity: 0-100kg
Material: Stainless Steel
Rated Output: 1.0-1.5mV/V
Insulation Impedance: ≥5000M/100VDC
Output Impedance: 350Ω
Recommended Excitation: 3-5V
Operating Temp Range: -20~80℃
Zero Balance: ±2%F.S.
Basic Infomation
Model Number: LFC-10
Payment & Shipping Terms
Packaging Details: Foam inside and carton outside/ Customize
Supply Ability: 500 Piece/Pieces per Week
Product Description

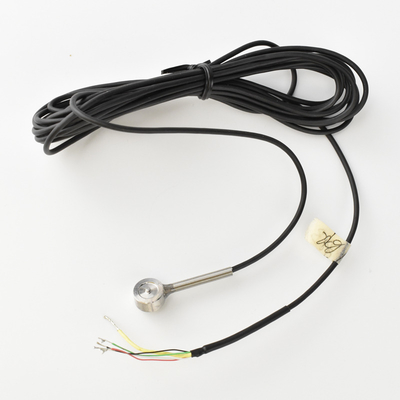

Miniature Compression Alloy Cell Stainless Steel Electronic Load Cell Machine Inspection Miniature Load Cell
Click to contact us
Capacity
5-100kg
Material
Stainless steel
Rated Output
1.0-1.5mV/V
Input impedance
35OΩ
Zero balance
± 2 % F.S.
Insulation
≥5000MΩ/100VDC
Non-linearity
1.0-3.0%F.S.
Recommended excitation
2.5-5V
Hysteresis
1.0%F.S.
Operation temp range
- 20 ~ 80ºC
Repeatability
1.0%F.S.
Safe Overload
150%
Creep (30min)
0.1%F.S.
Maxinum Overload
200%
Temp. effect on output
0.1% F.S. / 10ºC
Cable specifications
Ø2×3m
Temp. effect on zero
0.1% F.S. / 10ºC
Also available in TEDs
