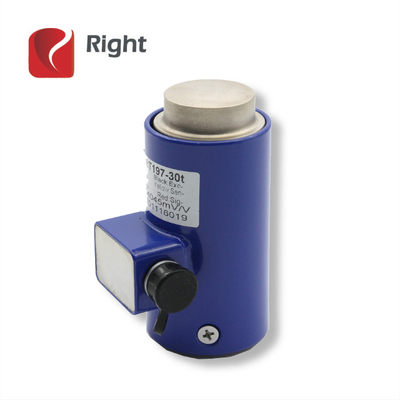

T197 compression force sensor has max. capacity of 5000t. It can be widely used on force measurement equipments for plants or labs. Due to its robust structure and IP67 design, this sensor has high stability, can be used in many different working environment.
1. Robust design and High Stability.
2. Max. capacity is 5000t .
3. Mianly used on force measurement equipment.
4. IP67 Design.
Specifications | ||
Capacity | 50,100,200,500,1000,2000,3000,5000,10000,20000,50000 kN | |
Rated output | -2.0 mV/V | |
Zero balance | ±1% F.S. | |
Non-linearity | 0.02%,0.05%,0.1%,0.3%F.S. | |
Hysteresis | 0.02%,0.05%,0.1%,0.3%F.S. | |
Repeatability | 0.02%,0.05%,0.1%,0.3%F.S. | |
Creep(30min) | 0.02%,0.05%,0.1%,0.3%F.S. | |
Temp.effect on output | 0.05%F.S./10℃ | |
Temp.effect on zero | 0.05%F.S./10℃ | |
Input impedance | 760±20Ω | |
Output impedance | 700±10Ω | |
Insulation | ≥5000MΩ/100VDC | |
Recommended excitation | 5V | |
Maximum excitation | 15V | |
Compensated temp range | -10~60℃ | |
Operation temp range | -30~70℃ | |
Safe overload | 150%F.S. | |
Ultimate overload | 300%F.S. | |
Cable size | φ5.4×6000mm | |
Material | stainless steel or aluminum alloy | |
Weight approx. | different kg | |
- Load Direction -
- Wiring Code -
