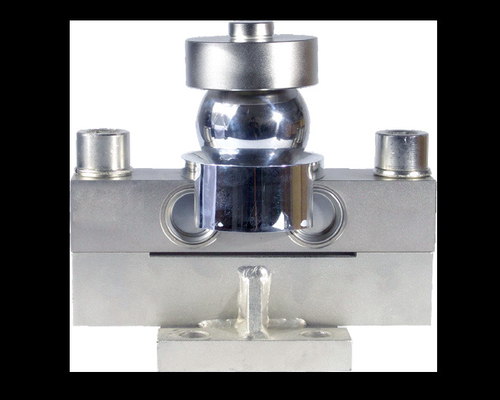

HM9B ZEMIC truck scale load cell 30 ton
· Shielded, 4 conductor cable.
· Cable diameter: Φ5.5mm.
· Standard cable length: 16m, also available
in 12m.
· Shield not connected to element.
Nickel plated alloy steel IP68 dual shear beam load cell
High accuracy
Suitable for truck, track, hopper and other electronic weighing devices
Current calibrated (sc-option)
Technical parameter 4 wires: Exc+(Red); Exc -(Black); Sig+(Green); Sig-(White)
|
Capacity |
t |
10/25t 30/40LE/40/50t |
|
|
Accuracy class |
|
OIML R60 C3 |
|
|
Minimum dead load |
klb |
0 |
|
|
Maximum number of |
n max |
3000 |
|
|
Ratio of minimum LC verification interval Y = E max / v min |
15000 |
75000 |
|
|
Combined error |
(%FS) |
±0.023 |
|
|
Output sensitivity |
(mv/v) |
2.0±0.002 |
|
|
Input resistance |
(Ω) |
700±7 |
|
|
Output resistance |
(Ω) |
700±7 |
|
|
Insulation resistance |
(MΩ) |
≥5000(50VDC) |
|
|
Zero balance |
(%FS) |
±1.5 |
|
|
Temperature,compensated |
(℃) |
-10~+40 |
|
|
Temperature,operating |
(℃) |
-35~+65 |
|
|
Excitation, Recommended |
(V) |
5~12(DC) |
|
|
Excitation,Max |
(V) |
18(DC) |
|
|
Safe overload |
(%FS) |
150 |
|
|
Ultimate overload |
(%FS) |
300 |
|
|
Ingress protection (according to EN 60529) |
|
IP68 |
|
