Applications 2ton 3ton 5ton Pressure Load Cell Pull Weight Tension Compression Electronic Weighing Type Alibaba Bestseller S Sensor

2 Pieces
MOQ
Applications 2ton 3ton 5ton Pressure Load Cell Pull Weight Tension Compression Electronic Weighing Type Alibaba Bestseller S Sensor
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: TAS501
Usage: Tension Compression Measuring Applications Electronic Weighing
Theory: Resistance Sensor
Output: Analog SENSOR
Capacity: 5~5000kg
Material: Alloy Steel
Defend Grade: IP66
Type: S Type Load Cell
Rated Output: 2.0 ± 0.004mV/V
Excitation: 9~ 12Vdc
Combined Error: ± 0.02%FS
Basic Infomation
Model Number: TAS501
Payment & Shipping Terms
Product Description
Big Discount
Product Description

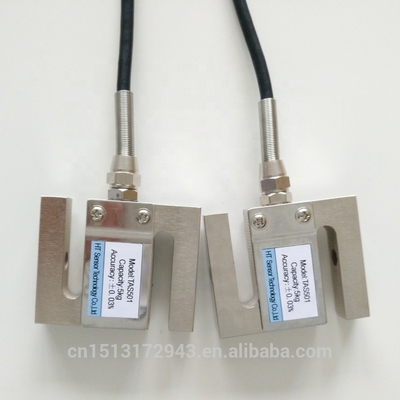

TAS501 S TYPE TENSION LOAD CELL

◆Capacity ：5~5000kg
◆Material: alloy steel
◆Type: S type
◆Defend grade: IP66
◆Application: portable scales , tension or compression measuring applications

and other electronic weighing devices.


Specifications
capacity
kg
5,10,20,30,50,100,150,200,300,500,1T,1.5T,2T,3T,5T
safe overload
%FS
150
ultimate overload
%FS
200
rated output
mV/V
2.0 ± 0.004
excitation voltage
Vdc
9~ 12
combined error
%FS
± 0.02
zero balance
%FS
± 1.0
non-linearity
%FS
± 0.02
hysteresis
%FS
± 0.02
repeatability

%FS
± 0.02
creep
%FS/30min
± 0.024
input resistance
Ω
350±20
output resistance
Ω
350±5
insulation resistance
M Ω
≥ 5000 @ 50 Vdc
operating temperature range
℃
-10~ +40
compensated temperature range
℃
-20 ~ +55
temperature coefficient of SPAN
%FS/10℃
± 0.023
temperature coefficient of ZERO
%FS/10℃
± 0.017
